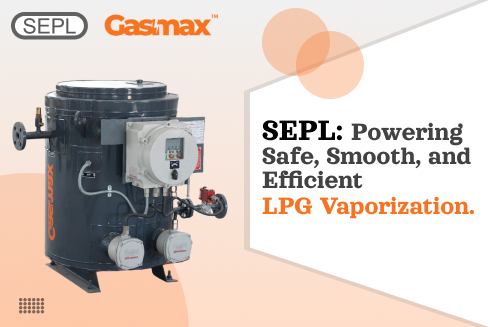

LPG Vaporizers – Industrial Gas Vaporization Systems

Water bath type vaporizers are widely used in industrial applications to convert liquefied petroleum gas or other cryogenic liquids into gaseous form. These vaporizers use heated water as a medium to transfer heat to the liquid LPG. It ensures a controlled and efficient vaporization process. They are commonly found in industries where a continuous gas supply is required. It is applicable even in cold climates where natural vaporization is insufficient.

Technical Specifications

The following table provides an overview of the key technical specifications of water bath type vaporizers:

Table: Technical Specifications of Water Bath Type Vaporizers

Water bath vaporizers are designed to work efficiently across various environmental conditions.

• LPG Entry: Liquid LPG enters the vaporizer from the storage tank.
• Heating Mechanism: The water bath is heated using an electric heater, steam coil, or gas burner.
• Heat Transfer: The heated water transfers heat to the LPG via submerged coils or heat exchangers.
• Vaporization: The liquid LPG absorbs heat and turns into gas.
• Gas Outlet & Regulation: The vaporized gas is then supplied to the desired application at a controlled pressure and temperature.

Benefits of Water Bath Type Vaporizers

Water bath type vaporizersoffer several advantages compared to other types of vaporizers. Here are some key benefits:


1. Consistent Performance

• Water has a high heat retention capacity, ensuring stable and uniform vaporization.
• No sudden temperature fluctuations, leading to a steady gas flow.

2. High Efficiency

• Utilizes indirect heating, reducing heat loss and maximizing energy use.
• 100% efficiency in converting liquid LPG to gas.

3. Suitable for Cold Climates

• Unlike direct vaporizers, water bath vaporizers function effectively even in sub-zero temperatures.
• Prevents freezing issues commonly seen in ambient vaporizers.

4. Long Equipment Life

• Made of corrosion-resistant materials such as stainless steel.
• Requires minimal maintenance compared to direct flame vaporizers.

5. Versatility in Applications

• Used in LPG storage and distribution terminals, industrial heating, power plants, and chemical processing.
• Can handle a wide range of vaporization capacities from small-scale to large industrial setups.

FAQ's

1. How often should a water bath vaporizer be maintained?

Regular maintenance includes:

• Daily checks for leaks and pressure anomalies.
• Monthly water level and thermostat inspections.
• Annual professional servicing to clean heat exchangers and check safety mechanisms.

2. Can water bath vaporizers operate in freezing temperatures?

Yes. Since the water bath retains heat, it prevents the LPG from freezing, making it ideal for cold weather conditions.

3. How long does it take for a water bath vaporizer to start operating?

It depends on the model and heating method:

• Electric heaters: 10–20 minutes.
• Steam coils: 5–10 minutes.
• Gas burners: 5–15 minutes.

4. What industries use water bath vaporizers?

• Petrochemical and gas distribution terminals
• Manufacturing and power plants
• Agricultural processing and food industries
• LPG fueling stations

5. Are water bath vaporizers energy efficient?

Yes, they are more energy-efficient compared to direct-fired vaporizers since they use indirect heating, reducing fuel consumption and heat loss.

A dry type vaporizer is a type of LPG vaporizer that utilizes an external heat source. It converts liquefied petroleum gas or other cryogenic liquids into gas. Unlike wet vaporizers, dry type vaporizers operate without water. It reduces maintenance needs.This improves efficiency.

Dry vaporizers are widely used in power generation applications. This ensures a controlled supply of gaseous fuel for gas-consuming equipment.

Technical Specifications of Dry Type Vaporizers

Dry type vaporizers operate using electric heating elements or other heat sources embedded in heat-exchange chambers. The process includes:

• LPG Supply: Liquid LPG enters the vaporizer from the storage tank.
• Heat Transfer: The vaporizer applies controlled heat to the LPG without direct water or steam contact.
• Vaporization: The heat causes the LPG to convert into a gaseous state.
• Pressure Regulation: The gas expands and is regulated to ensure optimal pressure.
• Gas Distribution: The vaporized LPG is then supplied to downstream equipment.

The use of electrical or other heating methods ensures that the system remains dry. This eliminates the need for water-based heating solutions.

Benefits of Dry Type Vaporizers

1. High Reliability

• Unlike water-bath vaporizers, dry type vaporizers do not require water replenishment.
• Eliminates issues like corrosionand microbial contamination found in water systems.

2. Energy Efficiency

• Dry vaporizers use precisely controlled electric heating elements, reducing energy waste.
• Rapid startup and shutoff times improve operational efficiency.

3. Space-Saving Design

• Compact and modular, making them easy to install in locations with space constraints.
• Available in skid-mounted or wall-mounted options.

4. Improved Safety Features

• Designed with automatic temperature and pressure controls to prevent overheating.
• Built-in safety shutoff valves and alarms protect against gas leaks or malfunctions.

5. Suitable for Cold Climates

• No risk of freezing, unlike water-based vaporizers that require anti-freezing measures in extreme temperatures.

6. Compliance with Industry Standards

• Meets international safety regulations. Thisensures safe operation in industrial settings.

FAQ's

What industries use dry type vaporizers?

Dry type vaporizers are used in industrial heating, power generation, chemical processing, automotive LPG fueling stations, and commercial kitchens that require a continuous and reliable gas supply.

How is a dry vaporizer different from a water-bath vaporizer?

Dry vaporizers do not use water for heat transfer. This reduces maintenance.Iteliminates risks of freezing or water contamination. Water-bath vaporizers rely on heated water. Theyrequire frequent monitoring.

How long do dry vaporizers last?

With proper maintenance, dry type vaporizers can last 10–20 years. Itdepends on usage.

What are the main safety features in dry type vaporizers?

Safety features include automatic temperature controls, pressure relief valves, emergency shutdown systems, and gas leak detection sensors.

Can dry type vaporizers operate in extreme cold temperatures?

Yes, they are ideal for cold climates because they do not rely on water.It can freeze in low temperatures.

Do dry vaporizers require frequent maintenance?

No, they require minimal maintenance compared to wet-type vaporizers since there is no water system involved. However, periodic inspections of heating elements.

Ambient water vaporizers are used in cryogenic gas systems. Theyfacilitate the transformation of liquefied gases into gaseous form. These vaporizers operate by utilizing natural convection heat from the surrounding air. They are widely used in industries dealing with LNG, LOX, LIN, LAR, and CO₂, among others.

Ambient water vaporizers are heat exchangers designed to convert cryogenic liquids into gaseous form using the ambient air as the heat source. These systems make them an ideal choice for gas processing industries.

Technical Specifications of Ambient Water Vaporizers

Ambient water vaporizers come in different designs, depending on their application and gas type. Below are key technical aspects:

1. Material Composition

• Finned Tubes: Typically made of aluminium for enhanced heat transfer.
• Piping and Frames: Constructed from stainless steel or carbon steel for durability.

2. Heat Exchange Efficiency

• Optimized fin spacing to maximize surface area exposure to air.
• Height and width configurations designed for specific heat exchange capacities.

3. Capacity Range

• Varies from 100 Nm³/h to over 10,000 Nm³/h depending on industrial demand.
• Can be customized for different gas flow rates and operational conditions.

4. Operating Pressure

• Standard units typically handle pressures from 10 bar to 300 bar.
• High-pressure variants available for specialized applications.

5. Installation Requirements

• Requires open spaces to ensure unobstructed airflow.
• Placement should consider wind direction for optimal efficiency

6. Performance Factors

• Higher efficiency in warmer climates with better ambient heat availability.
• Performance can be reduced in cold environments, requiring larger surface areas or supplemental heating methods.

How do ambient vaporizers compare to electrically heated vaporizers?

Benefits of Ambient Water Vaporizers

1. Energy Efficiency

• Zero external energy consumption, reducing operational costs.
• No requirement for electrical or steam-based heating sources.


2. Environmentally Friendly

• Uses natural convection heat, reducing carbon footprint.
• No emissions or by-products, ensuring clean and sustainable operation.


3. Low Maintenance Costs

• Fewer moving parts minimize wear and tear.
• No need for fuel or power-based maintenance interventions.


4. High Reliability

• Continuous operation with minimal downtime.
• Simple design reduces the risk of mechanical failure.


5. Scalability and Customization

• Available in modular designs to suit different industrial needs.
• Can be expanded or upgraded as demand increases.


6. Safe Operation

• Eliminates risks associated with electric heating elements.
• Reduces the likelihood of overheating or pressure buildup

FAQs

1. What are the main applications of ambient water vaporizers?

Ambient vaporizers are used in various industries, including:

• Medical and healthcare (oxygen supply systems)
• LNG regasification terminals
• Industrial gas processing (argon, nitrogen, and hydrogen)
• Chemical and petrochemical industries
• Metallurgical and welding operations

2. How does ambient temperature affect vaporizer performance?

The efficiency of ambient vaporizers depends on:

• Air temperature – Higher temperatures enhance vaporization rates.
• Humidity levels – Moist air can improve heat transfer.
• Wind speed – Proper airflow ensures uniform heat absorption.


3. Can ambient vaporizers work in cold climates?

Yes, but they may require:

• Larger surface areas to compensate for low ambient heat.
• Supplementary heating methods like steam or electric heating for peak demand.


4. How often should ambient vaporizers be maintained?

• Regular visual inspections should be done monthly.
• Annual servicing is recommended to check for ice buildup or corrosion.
• Cleaning should be performed as needed to maintain optimal airflow.


5. Are there safety concerns associated with ambient vaporizers?

• Proper installation ensures unobstructed airflow for safe operation.
• Pressure relief valves should be checked regularly.
• Avoid exposure to external heat sources that could overpressurize the system.
